Rotary 4
Rotary 4 is a compact 4-inch rotary seed treater for lab and pilot batches, that delivers production grade, uniform coatings with fast recipe scale-up.
Product Overview

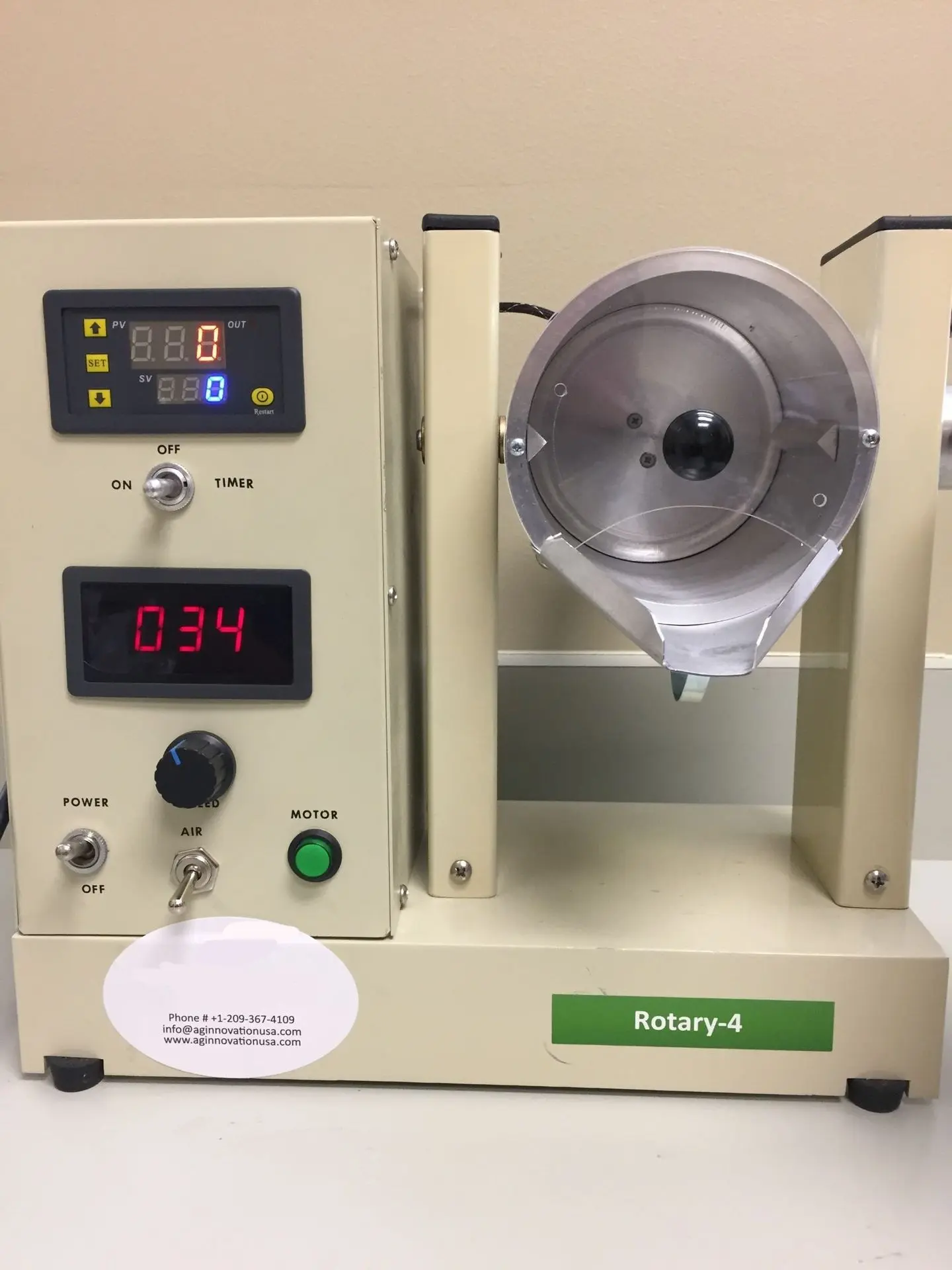

Rotary 4 is Aginnovation’s compact rotary seed treater and coating system engineered for lab, R&D and pilot runs. A 4-inch drum driven by a variable-speed rotor with digital read-out lets you process anywhere from 5 g to 100 g of broad-acre seed—or up to 60 g of horticulture seed—per batch, delivering production-grade treatment on a research scale.
Built on the same commercial rotary batch technology used in full-size treaters, Rotary 4 applies film coatings, build-up layers or pelleting materials with pinpoint accuracy.
Integrated controls—variable rotor speed, programmable timer and manual discharge straight into a seed packet—lock in repeatable protocols, making it easy to scale recipes from the bench to the production floor. Users report uniform coverage, faster turnaround between samples and significant labour savings.
Why it stands out for seed researchers
- Consistent, uniform coverage on every sample
- Rapid recipe development and quick scale-up to production treaters
- Compact, plug-and-play design for any lab or pilot plant
🌟 Features & Benefits
- Commercial rotary batch machinery technology
- Ability to coat small sample batches for R&D, trial work, and seed treatment recipe development
- Full set of controls for reproducing protocols
- Standard controls include variable rotor speed, manual on / off, and discharge door which unloads into empty seed packet holder
- Uniform and accurate seed treatment application on every sample
- Quick and easy scale up
- Greater efficiency and time-savings for large numbers of samples
- Ease of use and full operator control
Specifications
- 4 inch drum
- Basic control on / off
- Variable rotor speed selection, with digital readout
- Manual discharge system to unload into seed packets
- Timer system for protocol consistency
- Runs on either 110 volt 60hz or 220 volt 50 hz single phase
- Compact Size
- 12.5 inches (31.75 cm) L
- 6 inches (15.25 cm) W
- 10 inches (25 cm) H
- Weight
- 10.5 lbs (4.77 kg)
Applications
- Seed Treatment
- Film Coating
- Build-Up Coating
- Pelleting
🎯 Target Uses
- Research Samples
- Trial Seed Samples
- Ability to duplicate production scale treatments
Example capacity for seed treatment / coating (capacity for selected crops) depending upon seed density:
- Broad acre crops = 5g up to 100g per batch
- Horticulture crops = 5g up to 60g per batch
🎛️ Standard Equipment
- Rotor / Stator with variable speed control and read out
- Timer system to set rotor run time
- Manual loading of seed
- Manual liquid dose system
- Air assist to eliminate debris from entering gap between rotor & stator
- Discharge directly into waiting empty seed packet
Optional Equipment
Liquid product dispensing system, which includes dispenser stir plate and wand
The information given is believed to be accurate and is given in good faith, but no representation or warranty as to its completeness or accuracy is made.
