Rotary 12

Rotary 12 is a 12-inch drum rotary seed treater for lab and pilot batches, that delivers production grade, uniform coatings with fast recipe scale-up.


 PDF Version Downlo​​ad​​​​​​

Product Overview

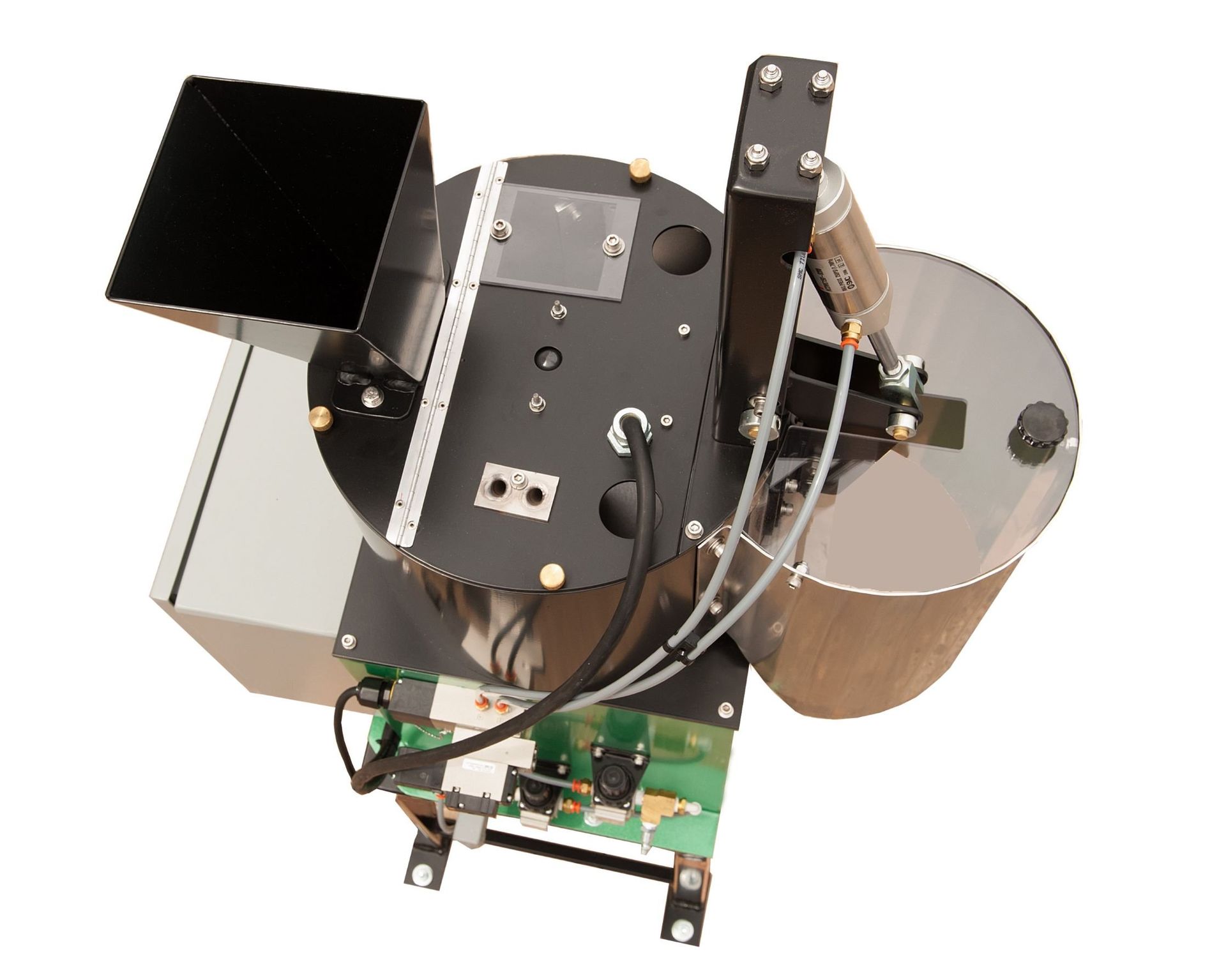

Rotary 12 is Aginnovation’s largest benchtop rotary seed treater, built to bring production-grade coating precision into the lab. Its 12-inch drum handles everything from 250g research lots up to 4 lb broad-acre batches—or 100 g to 3.25 lb of horticultural seed—so you can duplicate full-scale protocols without wasting inventory.

Commercial rotary-batch engineering delivers uniform, repeatable coverage, while standard features like variable rotor speed, internal chamber lighting and a side-discharge door keep every run visible, controllable and mess-free.

Need next-level accuracy? Add optional PLC automation, a peristaltic slurry pump or seed-count dosing to lock in recipe precision and push data straight into your scale-up workflow.

The result is faster formulation development, seamless scale-up and significant labor savings. Enable your team to focus on innovation, not rework.

🌟 Features & Benefits

  • Commercial rotary batch machinery technology
  • Small sample batches for trials and seed treatment recipe development
  • Full set of optional automated controls
  • Standard controls include variable rotor speed, light inside coating chamber for visibility, manual on/off, and discharge door control
  • Uniform and accurate seed treatment application on every sample
  • Quick and easy scale up
  • Greater efficiency and time-savings for large numbers of samples
  • Ease of use and full operator control

 Specifications

  • 12 inch drum, rotary seed treatment and coating equipment
  • Basic control on / off
  • Variable rotor speed selection
  • Side discharge door
  • Light inside coating chamber for visibility
  • Available 110 volt 60hz or 220 volt 50 hz single phase


 Applications

  • Seed Treatment
  • Film Coating
  • Build-Up Coating
  • Pelleting

🎯 Target Uses

  • Research Samples
  • Trial Seed Samples
  • Ability to duplicate production scale treatments

Example capacity for seed treatment / coating (capacity for selected crops) depending upon seed density:

  • Broad acre crops = 250g up to 4 lbs. per batch
  • Horticulture crops = 100g up to 3.25 lbs. per batch

🎛️ Standard Equipment

  • Rotor / Stator
  • Manual loading of seed
  • Manual liquid dose system
  • Light inside coating chamber for visibility

 Optional Equipment

  • Peristaltic pump for precise application of slurry treatment
  • PLC, 3-timer system, control of pump, coating cycle, and discharge door
  • PLC, Seed count option, entry of seed count for control of liquid pump system
  • Foot pedal for starting coating sequence
  • Scale system for weighting seed batches
  • Powder feeder 1-inch

The information given is believed to be accurate and is given in good faith, but no representation or warranty as to its completeness or accuracy is made.
