RFBD-150
Conditioner

Rotary Fluid Bed Dryer and Conditioner

Finish treated seed quickly with Aginnovation’s RFBD 150 rotary fluid-bed dryer and conditioner. Its compact footprint slips onto any line, drying and polishing seed in just 20 seconds with a controlled air cushion. Energy-smart, whisper-quiet fans and tool-free tweaks let it shine in the lab, pilot lot, or full-scale run.

 PDF Version Downlo​​ad​​​​​​

Product Overview

The RFBD 150 combines variable-speed fans with adjustable discharge controls to keep seed fluidized from inlet to outlet, delivering uniform moisture removal and throughput that helps you meet peak-season demand without over drying or creating bottlenecks.

A rotating drum cushions each seed, gently polishing the coating for smooth flow while protecting germination and enabling higher active-ingredient loadings for premium performance in the field.

Integrated inlet and exhaust ports tie directly into your dust system, eliminating chemical buildup on downstream equipment and maintaining a cleaner, safer workspace for operators and seed alike.

Movable locking casters, optional heated-air and FlexiDry™ upgrades, and interchangeable drum meshes let you tailor dwell time, air temperature, and screen size to any crop species or humidity level, all without lengthy changeovers.

🌟 Features & Benefits

  • Fluidized drying/curing of seed
  • Dry seed out of conditioner
  • Exhaust dust ports vented to dust system
  • Energy efficient and quiet operation
  • Gentle on seed
  • Polishes seed for excellent seedflow
  • Enables increased treatment actives
  • Maximizing produc on opera ons
  • NO treatment buildup on handling equipment
  • NO treatment buildup chunks in grower seed
  • Keep treatment on seed for maximum performance
  • Excellent health & safety profile for personnel
  • Operator friendly
  • Maintain maximum seed quality
  • Premium seed drop accuracy by grower
  • Increased performance and pest control, enabling higher crop yields

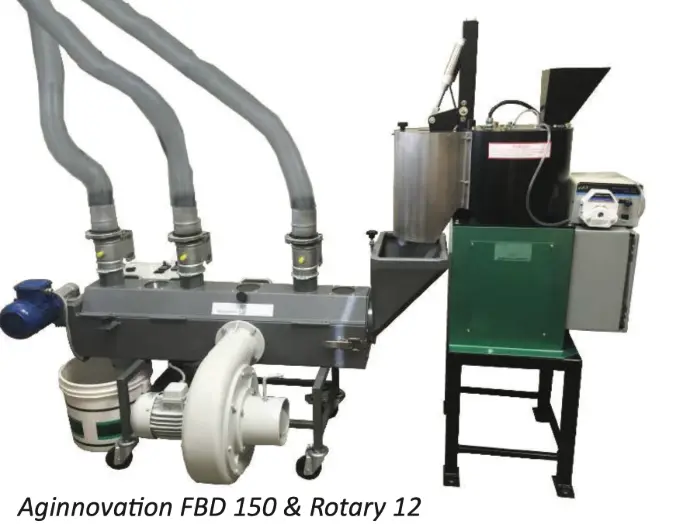

  • Integrates with Aginnovation treaters, such as the Rotary 12:

 Specifications

  • Footprint- 55” X 34” X 28”
  • Fluidized drying, variable fan and discharge controls
  • Capacity*
    • > Corn- 10-15 units/hr
    • > Soybean- 9-14 units/hr
  • Dwell time: 20 seconds
  • Conditioner has movable locking wheels and castors
  • Optional heated air capabilities
  • FlexiDry™ compatible

 Applications

  • Seed Treatment
  • Film Coating
  • Build-up Coating
  • Pelleting

🎯 Target Uses

  • Seed treatment R&D
  • Research Samples
  • Trial Seed
  • Production Runs

🎛️ Standard Equipment

  • RFBD-150 Conditioner and 1 Drum
  • Electrical Control Box
  • Available 220 volt 60 hz three phase
  • Inlet fan and exhaust ports
  • Rotating drum technology enables a simple continuous flow system
  • Seed Polishing
  • Reduce and eliminate tack and binding of treated and coated seed
  • Variable speed adjustment for drum rotation, to increase or decrease dwell time in the chamber
  • Drum mesh can be interchanged as needed for different seed species
  • Closed system with exhaust ports for dust collection purposes

 Optional Equipment

  • Drum mesh for different seed species
  • FlexiDry™ for low humidity drying

The information given is believed to be accurate and is given in good faith, but no representation or warranty as to its completeness or accuracy is made.
